Description
Video of dB15:
#160;
Description:

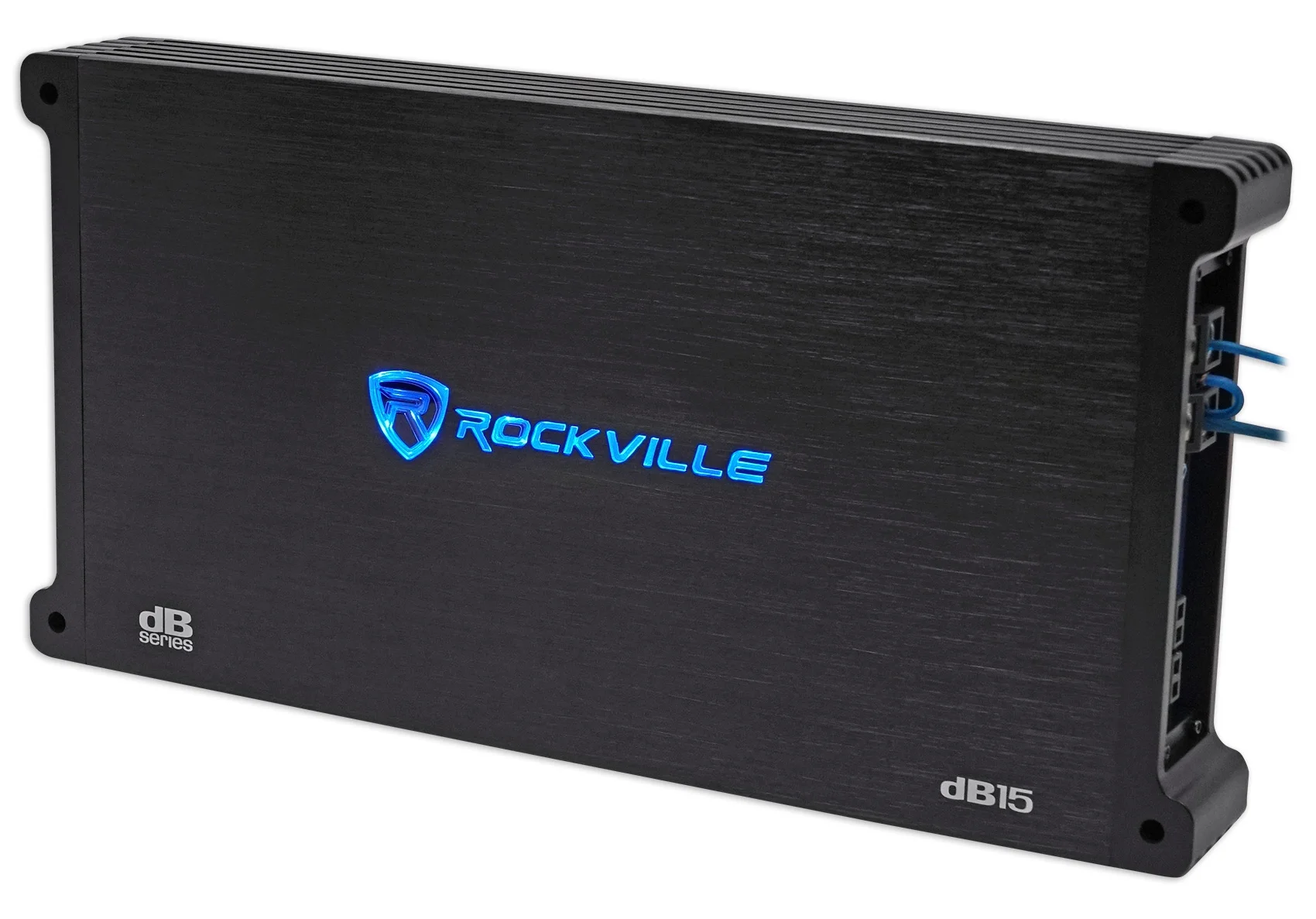

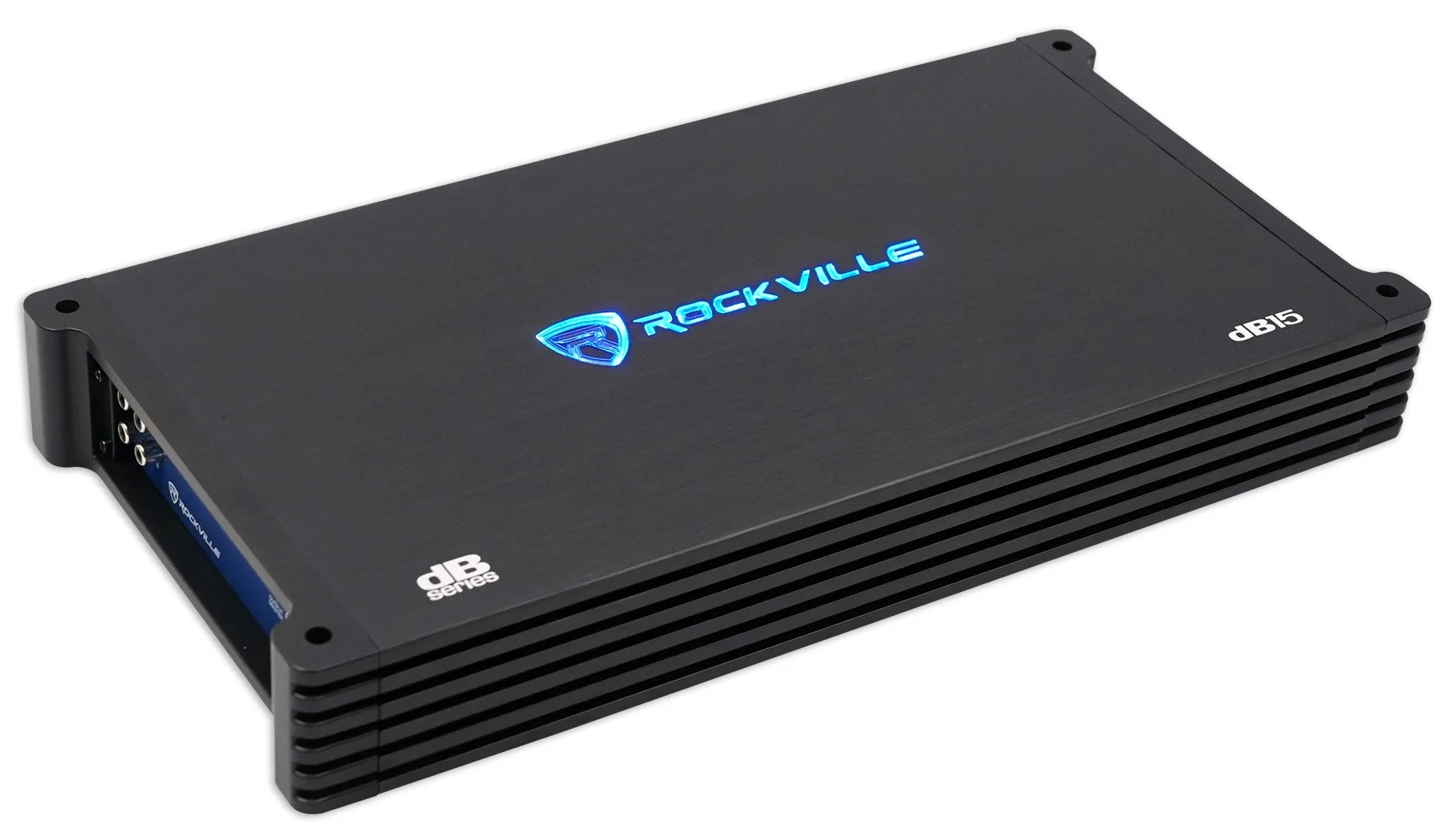

The dB15 is a mono amplifier with 6,000 watts peak output and 1500 watts#160;
Dyno-Certified
power.#160;Here at we offer the best value in car audio. We therefore want to make it easy for you to compare our products to any brands on the market.#160;
The peak rating can be used to compare with brands who use peak ratings such as Boss and Power Acoustik while the#160;Dyno Certified RMS rating can be used to compare with top brands such as Kicker, Rockford, Alpine, etc.#160;
One of the tricks to determine the real power of a car amplifier is to multiply the fuse rating by 10 to determine the true RMS power. This formula almost always works within 20 %. The dB15 features a fuse with a rating of 150 Amps. Although we rate these conservatively at 1500 watts#160;
Dyno Certified
@ 2 ohms, this amplifier puts out more power than this!

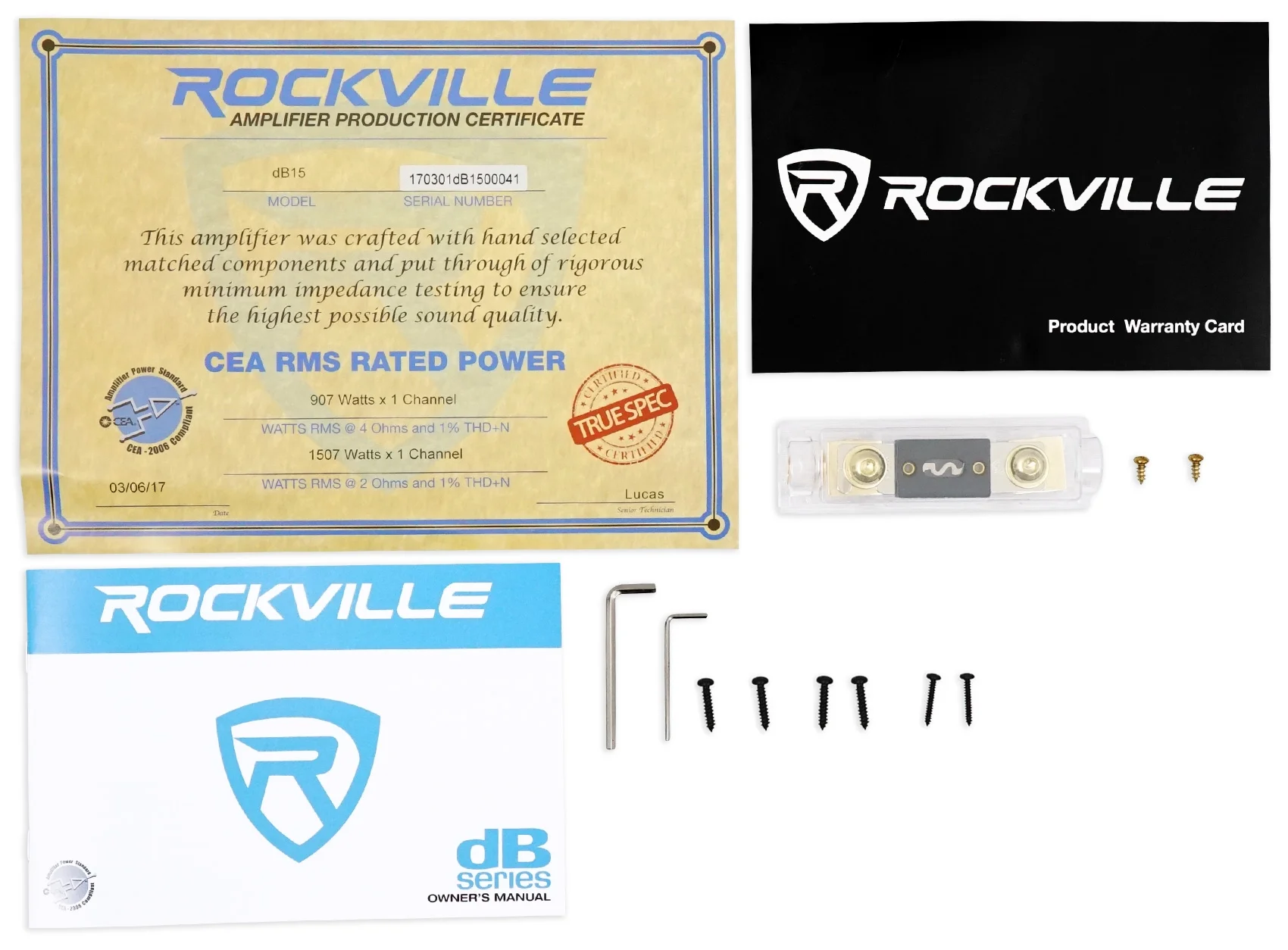

Includes:
Amplifier
Bass Remote
Birth sheet with tested power
Owner��s manual
Mounting Screws
Warranty
Features:
dB15 6000 Watt Peak/1500 Watt Dyno-Certified RMS Mono 2 Ohm Amplifier Car Audio Amp
Dyno Certified RMS Power Ratings: (Certified Dyno Test / Less than 1 % THD) (Use these ratings when comparing with top brands such as Kicker, Rockford Fosgate, etc)
2 Ohm: 1500 Watts x 1 Channel lt;1% THD+N
4 Ohm: 900 Watts x 1 Channel lt;1% THD+N
Peak: (Use these ratings when comparing with the top budget brands such as Boss, Power Acoustik, etc)
2 Ohm: 6000 Watts x 1 Channel
4 Ohm: 3600 Watts x 1 Channel
High-Speed MOSFET Power Supply
Optical Coupler Class ��D�� Technology

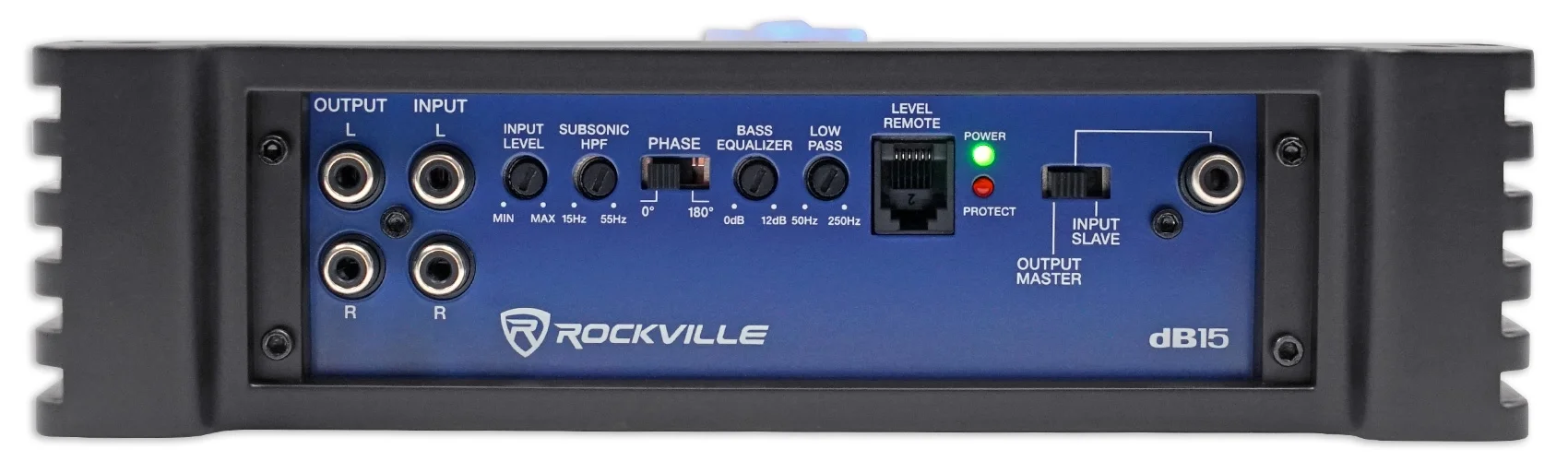

Fully Adjustable 12dB / Octave Crossover with Differential Circuitry
Low Pass Filter: 50Hz 250Hz
Subsonic Filter: 15Hz 55Hz
Phase Control Switch
Full IC-Controlled Protection Circuitry
Remote Dashboard Subwoofer Control
Fully Adjustable 12dB Bass Equalizer
Mute and Delay Soft Start System
RCA Preamp Line Output
8 Volt Preamp Circuitry
Status Mode LED Indicator
Minimum THD at Rated Power: lt;0.1%
S / N Ratio: gt;90dB
Under Voltage Protection at 10V
Over Voltage Protection at 16V
Frequency Response: 15Hz 250Hz
Damping Factor: gt;150 @ 100Hz
Includes: Amplifier. Bass Remote. Birth sheet with tested power. Owner��s manual. Mounting Screws. Warranty. dB15 6000 Watt Peak/1500 Watt Dyno-Certified RMS Mono 2 Ohm Amplifier Car Audio Amp. Dyno Certified RMS Power Ratings: (Certified Dyno Test / Less than 1 % THD) (Use these ratings when comparing with top brands such as Kicker, Rockford Fosgate, etc). 2 Ohm: 1500 Watts x 1 Channel
